Draw scaled floor plans, trace over a PDF or photo, and export a clean take-off — no CAD subscription, no install, no account.
Most floor plan tools are either a full CAD package that takes a week to learn, or a subscription you don't want for something you'll use twice a month. TracePlan sits in between.
Drop in a photo, scan, or PDF as a faded underlay, calibrate the scale against one known dimension, and trace over it. Vector PDFs auto-detect wall lines.
Rooms, interior partition walls (straight or curved), doors, windows, cased openings, and cavity sliders — all snap to walls and split them automatically.
A furniture and cabinetry library that snaps flush to walls and auto-rotates to face into the room.
Pick a style (straight, L, U, winder, spiral), enter the floor-to-floor height, and get risers, riser height, and going calculated automatically — with warnings if anything falls outside comfortable limits.
Add a First Floor, Second Floor, whatever you need. Other levels show ghosted underneath the one you're editing so upstairs walls line up with what's below.
Every wall shows its length live. Turn on external dimension strings and the whole perimeter is measured automatically.
Schedule CSV (areas, wall/ceiling area, skirting, finishes take-off), PNG, PDF/Print with a title block, and an editable JSON save file.
Nothing you draw is ever uploaded. A single HTML file — double-click it and it runs. Needs internet once, to activate your license key.
Real UI, not mockups.

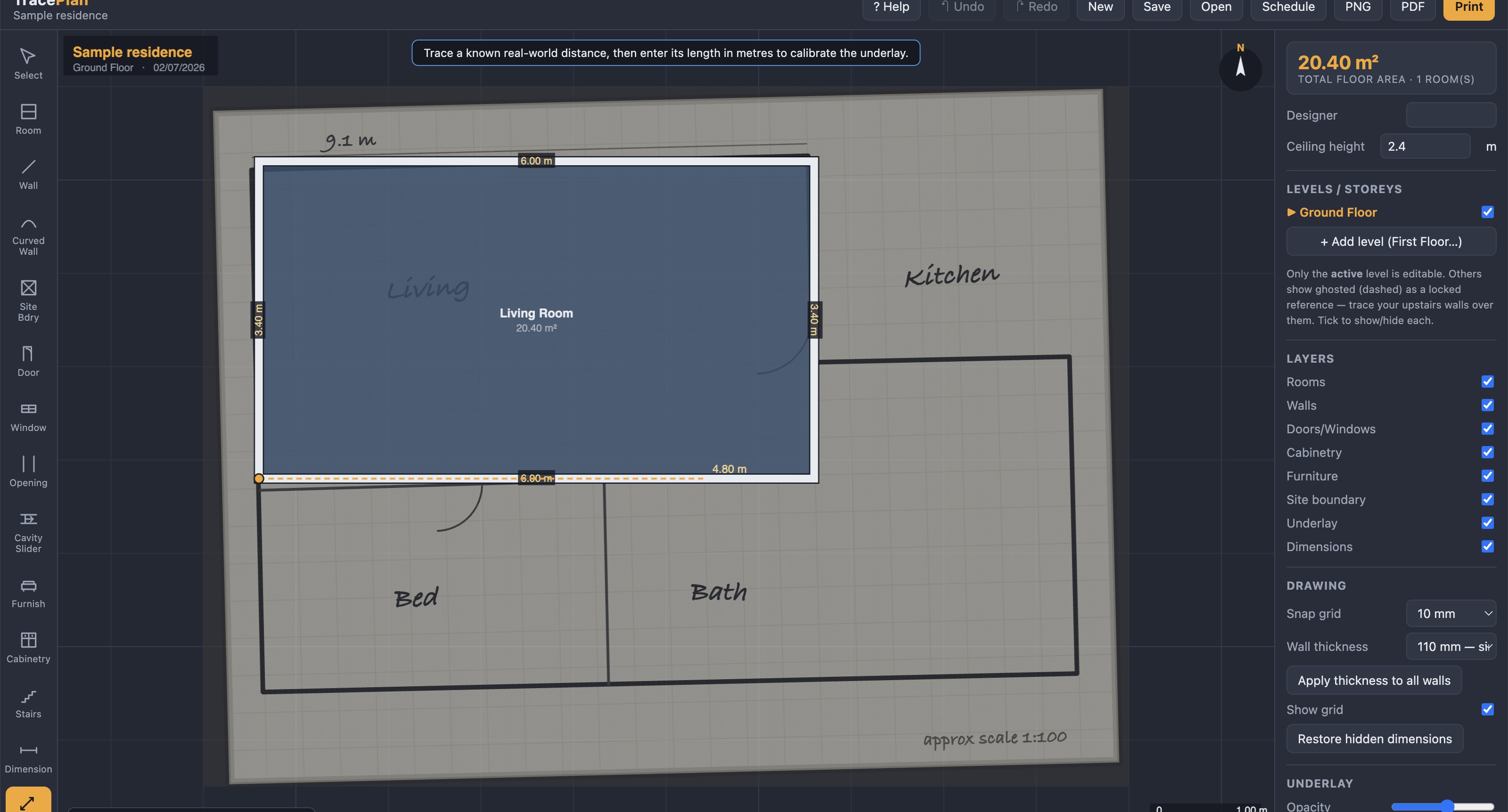

Drop in a photo or scan of an existing plan, trace the walls, then calibrate the scale against any known real-world dimension.

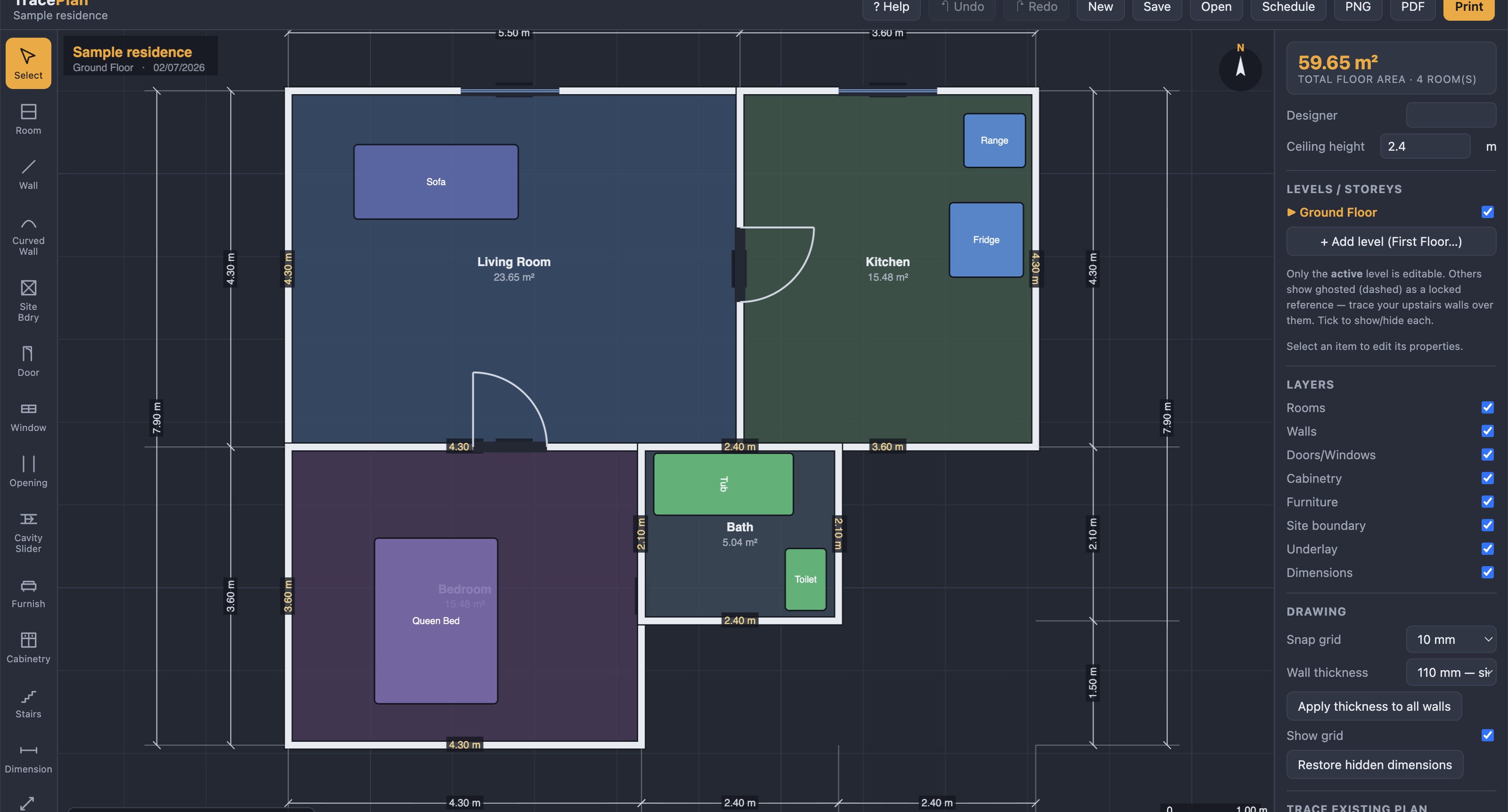

Rooms, furniture, and full dimensioning — everything you need to measure and quote from, in minutes.

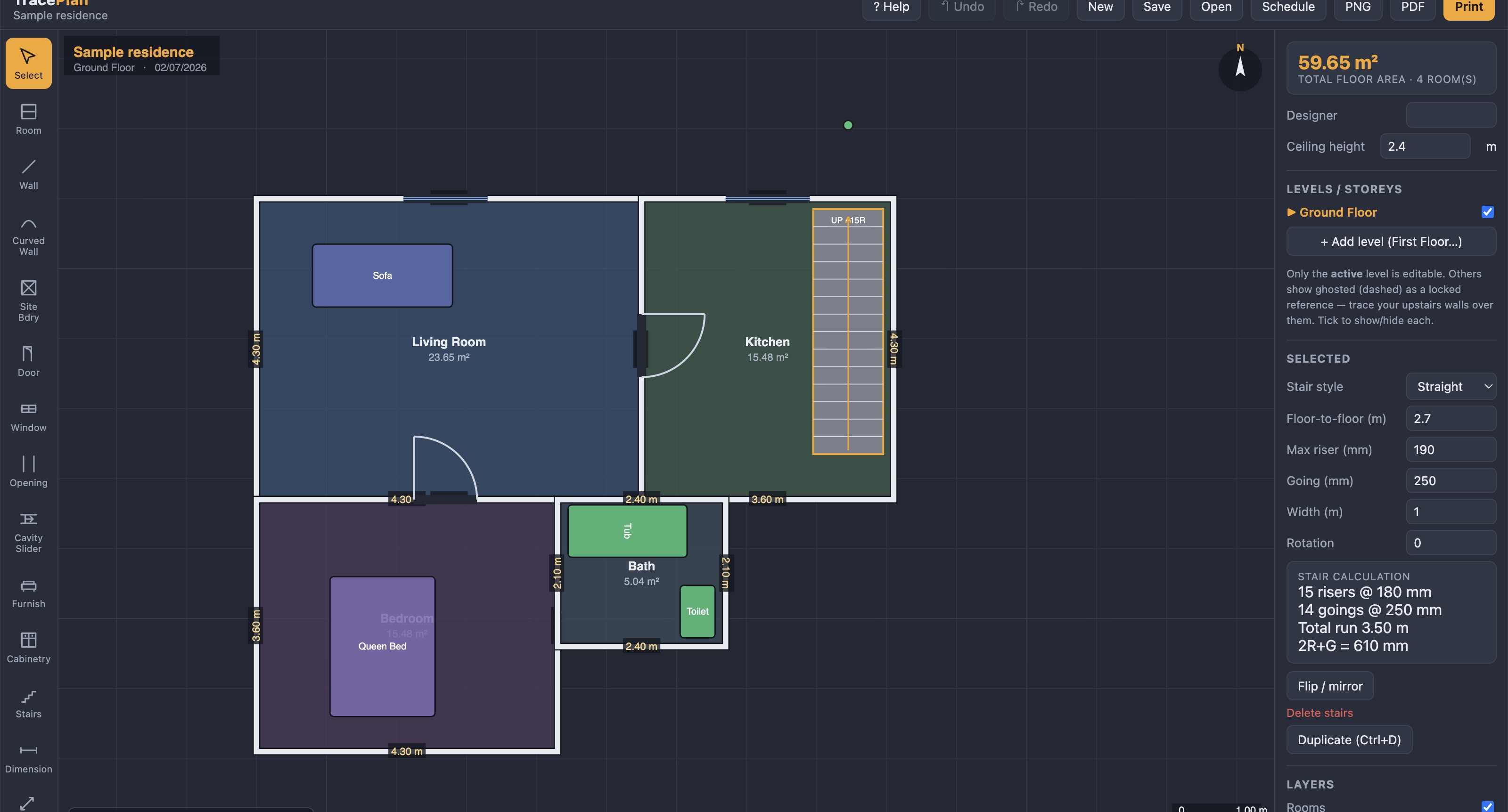

Pick a style and floor-to-floor height — risers, goings, and code-limit warnings are calculated automatically.

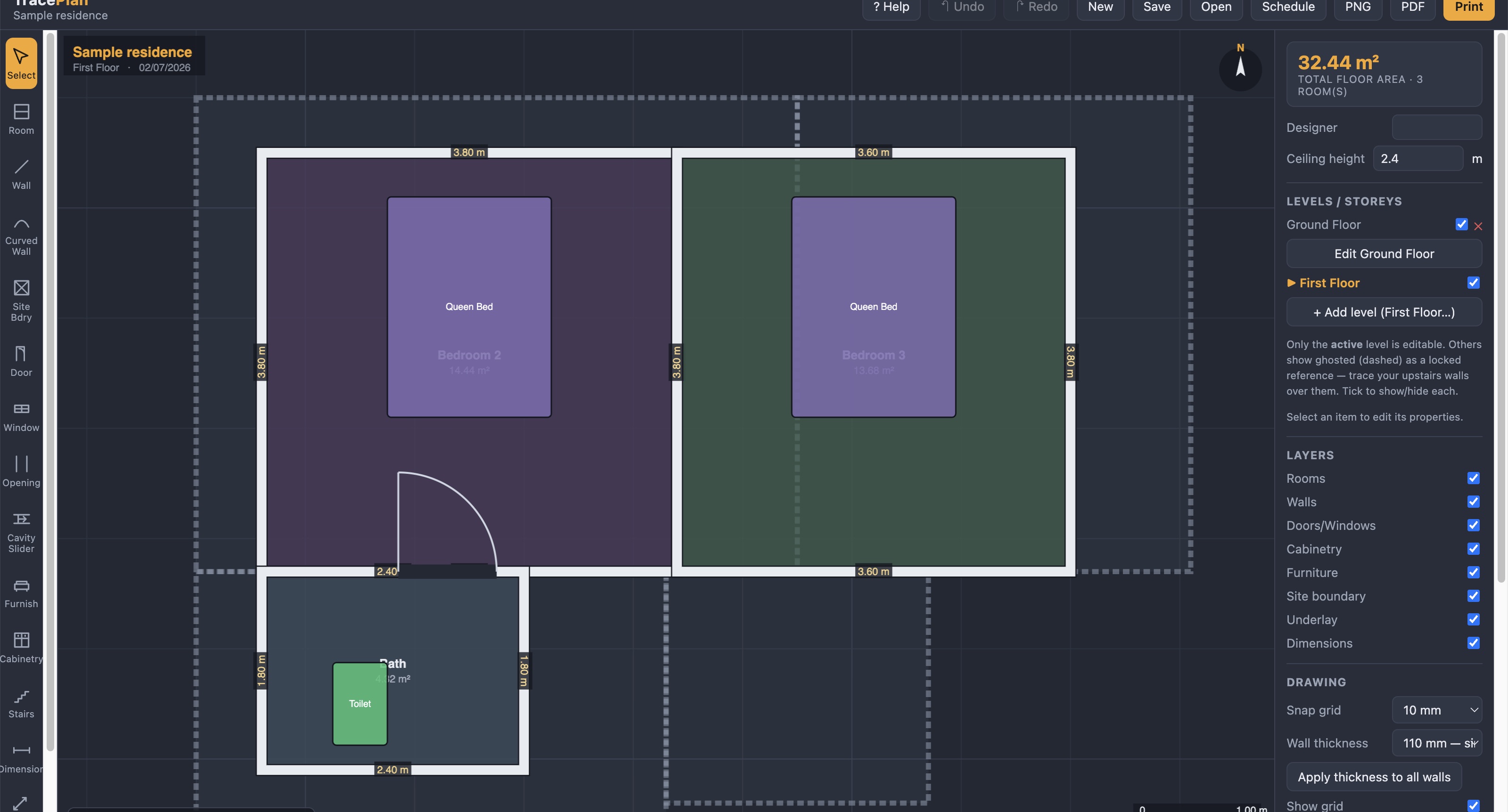

Add a First Floor and it shows the level below ghosted underneath, so upstairs walls line up with what's downstairs.

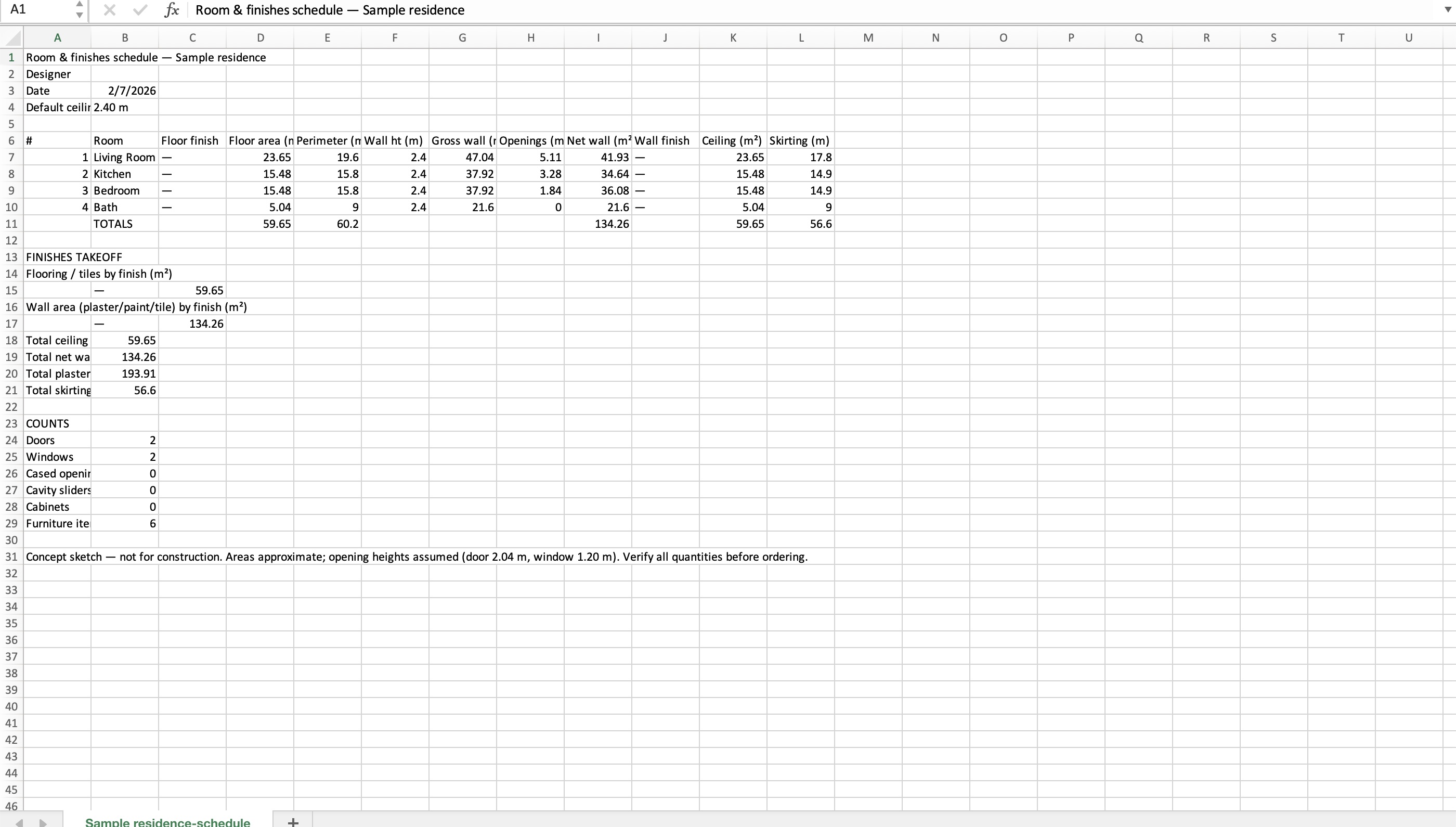

Per-room areas, wall/ceiling area, skirting length, and a finishes take-off — exported as a CSV that opens straight in a spreadsheet.

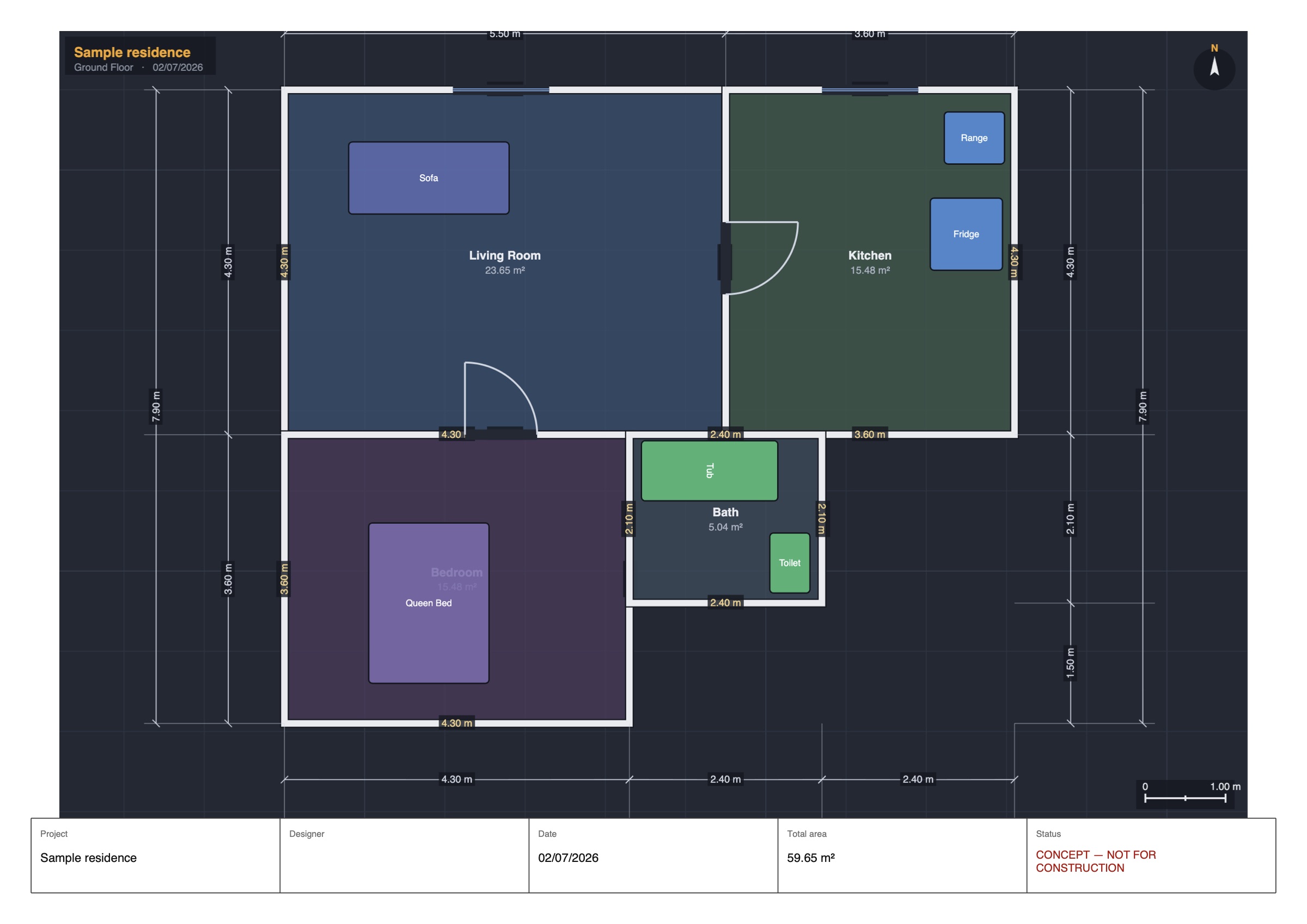

Export a print-ready PDF with a title block — ready to hand straight to a client.
One-time payment. No subscription, ever.
No. It's one HTML file. Open it in Chrome, Edge, Firefox, or Safari and it runs.
No. Everything runs in your browser. Your plan is only ever saved to your own computer as a .json file when you click Save.
Yes — your license key isn't tied to one machine, just to you. Install it on every computer you personally use.
No — a license key covers one named person only. Each teammate who needs to use TracePlan needs their own license.
Activating your license key needs an internet connection the first time. After that, drawing, saving, PNG export, Print, and the Schedule export all work fully offline. Importing or exporting a PDF needs an internet connection (it loads the PDF library from a CDN).
No — it's a concept-sketch tool for fast, scaled reference plans, not a certified construction or council-consent document.
We don't offer refunds directly, but your purchase is covered by our marketplace's own buyer-protection policy — check the refund terms shown at checkout.
Yes — email support@traceplan.app, best-effort, no guaranteed response time. The in-app ? Help guide covers every feature.
